Need help identifying the right part for your AR-15 or AR-10 build or repair? Our interactive exploded-view diagrams make it easy.



How to use the diagrams:

Click on any numbered part in the diagram
See the exact part name, description, and direct link to purchase.

AR15

APF Armory® – AR15 Lower Receiver

Click on any part to see product details

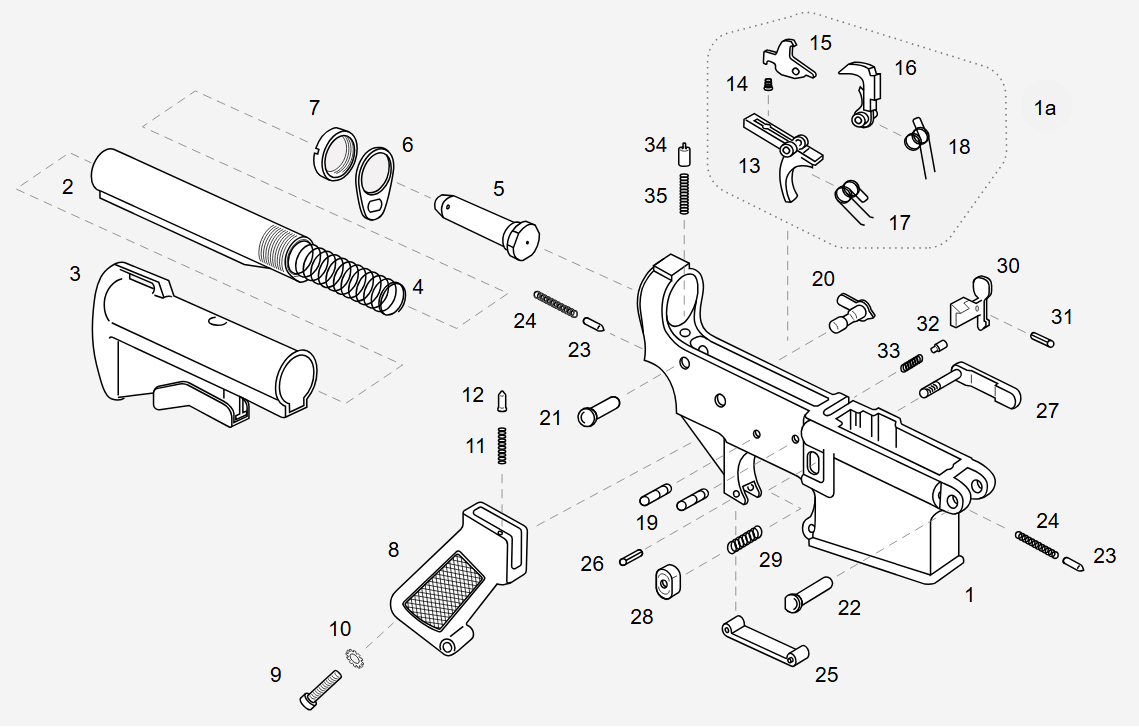

AR-15 Lower Exploded View 2: Mil-Spec 6-Position Buffer Tube 3: Adjustable Stock 9: Grip Screw 10: Grip Screw Washer 8: Pistol Grip 11: Safety Selector Spring 12: Safety Selector Detent 21: Rear Takedown Pin 24: Rear Takedown Detent Spring 24: Rear Takedown Detent Spring 23: Takedown Detent 23: Takedown Detent 25: Trigger Guard 28: Magazine Catch Button 26: Trigger Guard Roll Pin 19 Trigger/Hammer Pins 29: Magazine Catch Spring 22: Front Pivot Pin 5: AR15 Carbine Buffer 6: Receiver End Plate 7: Castle Nut 35: Buffer Retainer Pin Spring 34: Buffer Detent 14: Disconnector Spring 15: Disconnector 13: Trigger 17: Trigger Spring 18: Hammer Spring 16: Hammer 20: Safety Selector 33: Bolt Catch Spring 32: Bolt Catch Plunger 30: Bolt Catch 27: Magazine Catch 1: AR15 Lower Receiver 31: Bolt Catch Roll Pin 4: AR15 Carbine Buffer Spring

1: AR15 Lower Receiver
2: Mil-Spec 6-Position Buffer Tube
3: Adjustable Stock
4: AR15 Carbine Buffer Spring
5: AR15 Carbine Buffer
6: Receiver End Plate
7: Castle Nut
8: Pistol Grip
9: Grip Screw
10: Grip Screw Washer
11: Safety Selector Spring
12: Safety Selector Detent
13: Trigger
14: Disconnector Spring
15: Disconnector
16: Hammer
17: Trigger Spring
18: Hammer Spring

19 Trigger/Hammer Pins
20: Safety Selector
21: Rear Takedown Pin
22: Front Pivot Pin
23: Takedown Detent
24: Rear Takedown Detent Spring
25: Trigger Guard
26: Trigger Guard Roll Pin
27: Magazine Catch
28: Magazine Catch Button
29: Magazine Catch Spring
30: Bolt Catch
31: Bolt Catch Roll Pin
32: Bolt Catch Plunger
33: Bolt Catch Spring
34: Buffer Detent
35: Buffer Retainer Pin Spring

!
