AR10 Parts Diagram

AR-10

AR-10 Parts Diagram

Click any numbered part on the exploded views below. The original diagrams and links are unchanged.

APF Armory® – AR10 Lower Receiver

Click on any part to see product details

AR-10 Lower Exploded View

1: AR10 Lower Receiver

2: Bolt Catch Spring

3: Bolt Catch Plunger

4: AR10 Bolted Bolt Catch Pin

5: AR10 Bolted Bolt Catch Screw

6: AR10 Bolt Catch

7: AR10 Front Pivot Pin

8: Hammer/Trigger Pins

9: Safety Selector

10: AR10 Rear Takedown Pin

11: Buffer Retainer Pin

12: Buffer Retainer Spring




13: Trigger

14: Disconnector Spring

15: Disconnector

16: Hammer

17: Trigger Spring

18: Hammer Spring

19: Takedown Detent Spring

20: Takedown Detent

21: Safety Selector Detent
22: Safety Selector Spring

23: Magazine Catch Button
24: Magazine Catch Spring

25: Magazine Catch

APF Armory® – AR-10 Upper Receiver

Click on any part to see product details

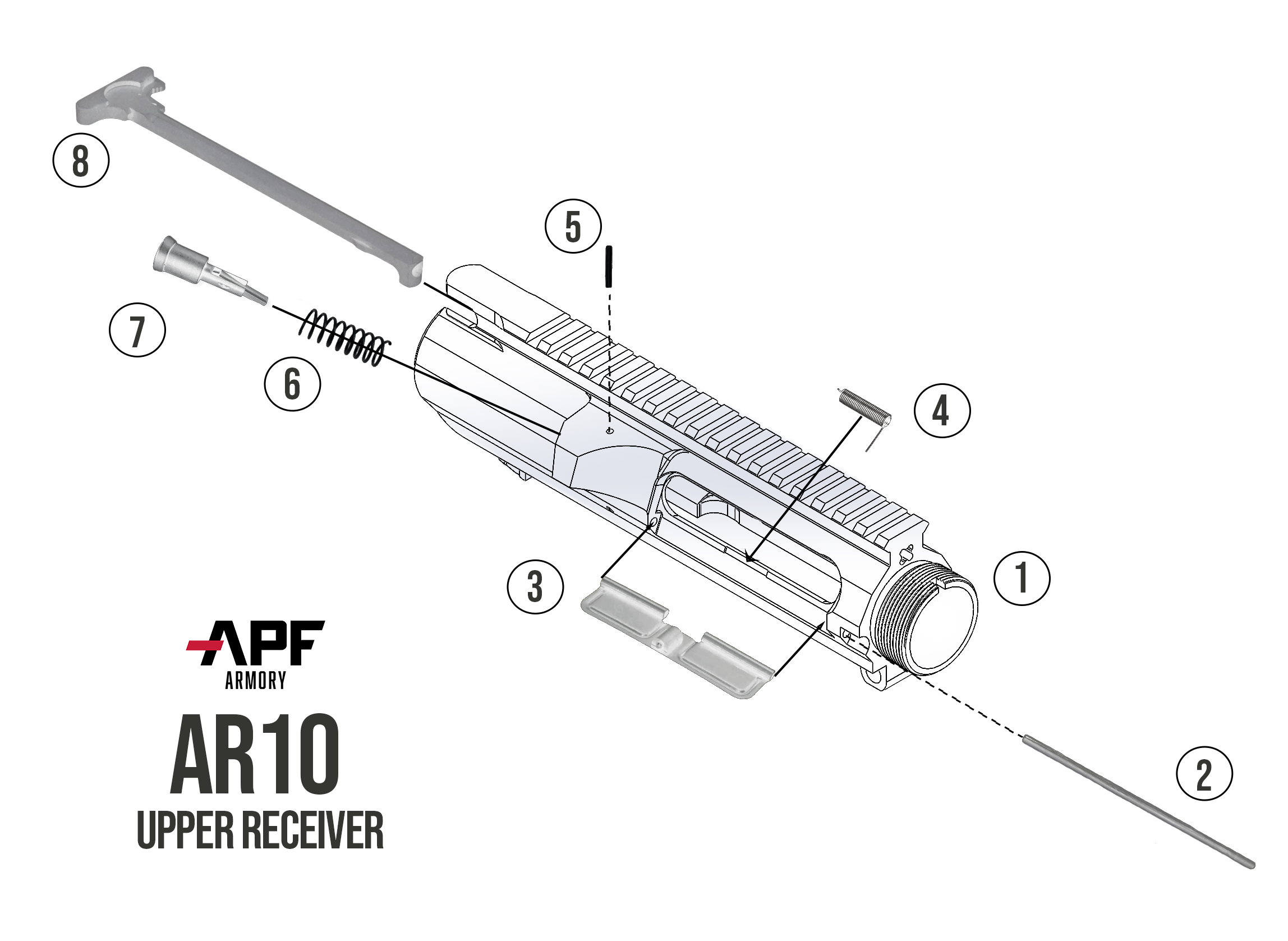

AR-10 Upper Exploded View

1: AR10 Stripped Upper Receiver

2: AR10 Dust Cover Pin

3: AR10 Dust Cover
4: Dust Cover Spring

5: Foward Assist Roll Pin

6: Forward Assist Spring

7: Forward Assist

8: AR10 Charging Handle

!
